Description

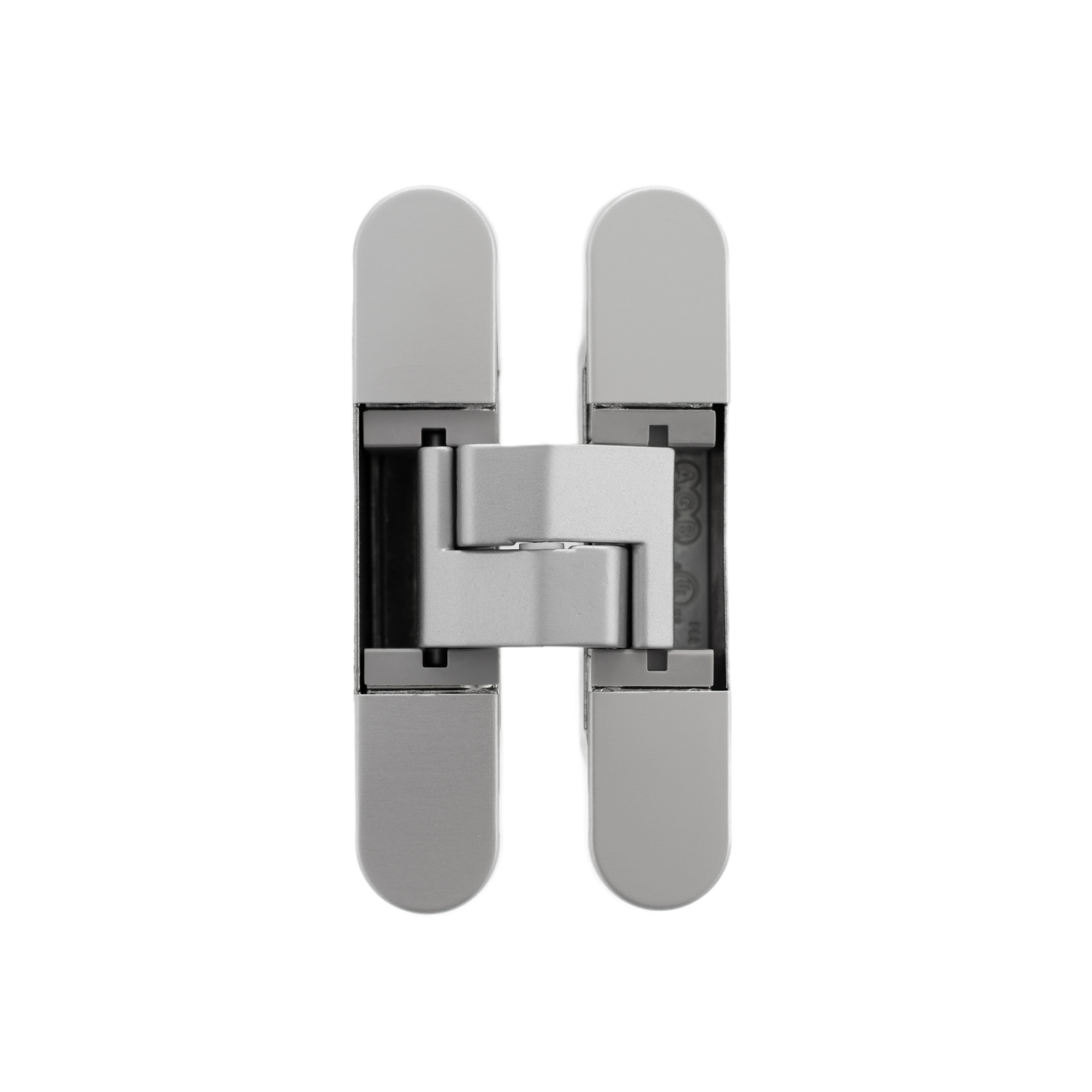

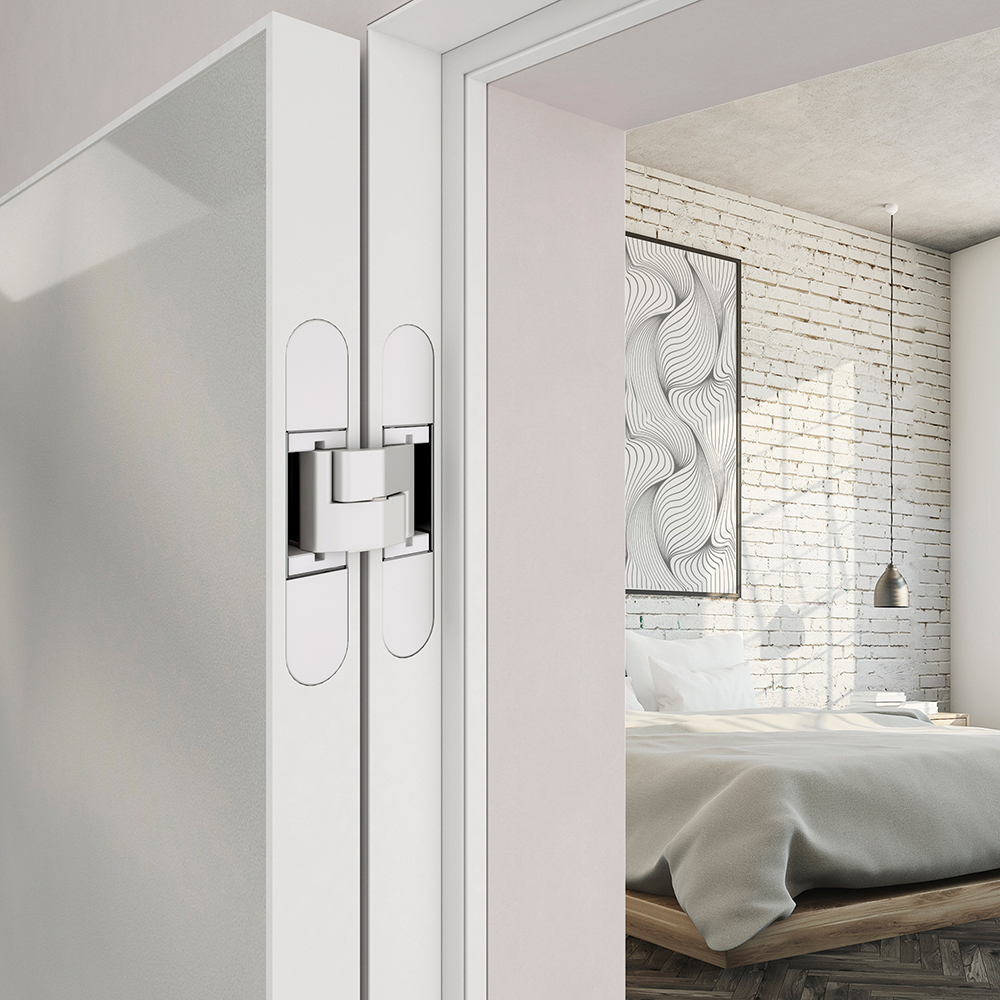

- This jig is suitable for the AGB Eclipse 3.2 range, including the 3.2 HD Concealed Hinge and 3.2 HD SELF Concealed Hinge, providing that the correct depth is drilled/routed out for.
- We recommend use of a top bearing guided router bit, E.g. Trend C121BX1/4TC, and drill out to full depth with a 22mm Forstner/ None self-feeding spade pit, and then cleanup with a chisel as needed.
- Indicator is centred and then has 3mm offset either direction, to allow correct placement of hinges.
- Manufactured using additive manufacturing with nylon PA12. If damaged by the router bit, it can be repaired using a two-part wood filler, while also ensuring no damage occurs to the router bit itself.
- Comes with the jig and 2 inserts. Atlantic UK recommend that this is only used on new doors and doors frames.
- Suitable for doors that are 35mm and upward, and with frame rebates that are no more than 12mm deep.
